380-kV-grid reinforcement in Northern Baden-Württemberg, P48
TransnetBW operates a line system with one 220-kV- and one 380-kV-circuit on the existing 380/220-kV-line LA0316 between Großgartach and Kupferzell. In future, the new LA0380 line is to be operated with two 380-kV-circuits. For structural reasons, the existing line system is not designed for this, which is why the existing line system is being replaced. The project was divided into 5 lots by the client, of which EUROPTEN was commissioned with the realization of lots 3 to 5.

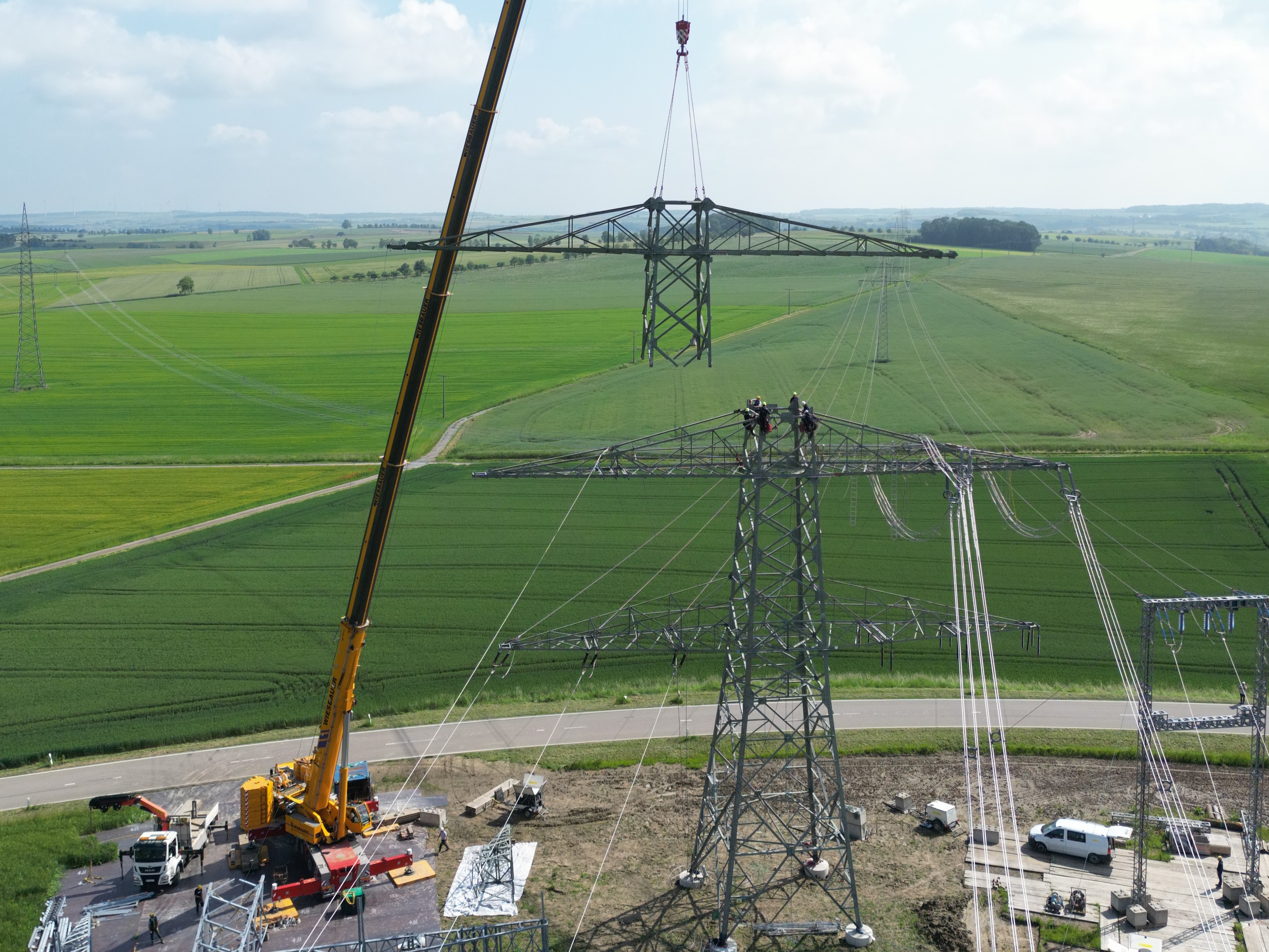

Between Kupferzell and the Rittershausen grid connection point, a 380-kV-feeder line for the existing overhead line LA0348, lots 6 and 7, will be installed on an open cross-arm site, both lots of which will be implemented by EUROPTEN. The existing pylons will be reinforced and individual foundations will have to be renovated.
Construction work began in December 2023 and is scheduled to be completed by November 2026. The central warehouse for the entire construction project will be managed by EUROPTEN until December 2027.
Project key figures
Project AreaFreileitung und Kabel Österreich (short FKA)
Project Start
10.2023
Project End
12.2027
Client
TransnetBW GmbH
Indicators
380-kV-replacement construction LA 0380, lot 3 - 5:
- New construction of 77 pylons
- Line length 28.7 km
- Pole steel 4,822 tons
- Conductor cables 700 km
- Chains 622 pcs.
- Dismantling 77 masts
380-kV-feeder cable LA 0348 Lot 6 and 7:
- Rope support on 139 masts
- Line length 50.9 km
- Pole steel 437 tons for reinforcement
- Conductor cables 624 km
- Chains 560 pcs.
